304 SUS Paintball Automatic Encapsulation Machine





Quick Detail



Control Mode	PLC+Touch Screen	Material	304 SUS
Application	CS Paintball Making	Certification	CE
Scale	Small/Medium/Large Scale Production	Capacity	32000pcs/hour Max



Product Description

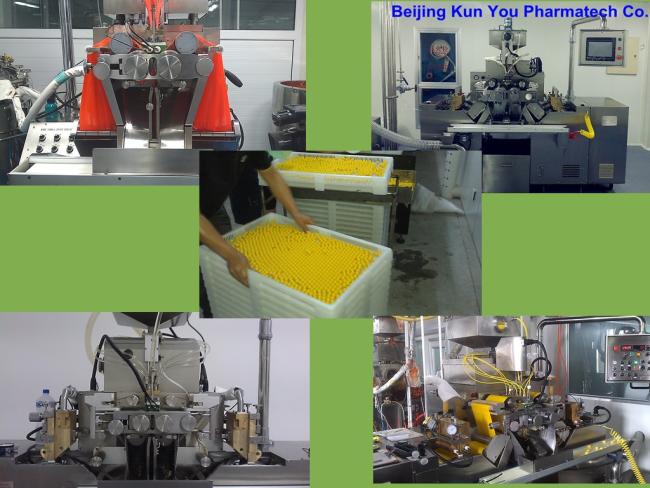

Beijing Kun You Pharmatech Co., Ltd has three model Paintball Making Machine.



Specification



Model	S403PB	S406PB	S610PB
Production Rate	8000pcs/hour	18000pcs/hour	32000pcs/hour
Consumption Power	3kw	7kw	20kw
Dimension(mm)	1100*600*800	880*640*1900	2050*1200*1850
Main Machine Weight(kg)	300kg	900kg	1900kg
Control Mode	PLC+Touch screen



Competitive Advantages



1. Small size, low energy consumption

2. Easy to operate and clean

3. High precision

4. Small load difference

5. Micro lubrication

6. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.

7. The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.

8. Air-cooling system is adopted at the output of paintball, that make paintballs amazing

9.Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.

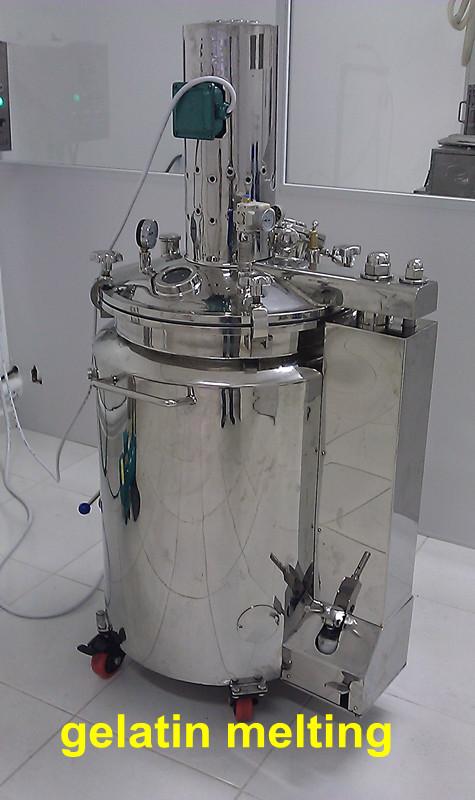

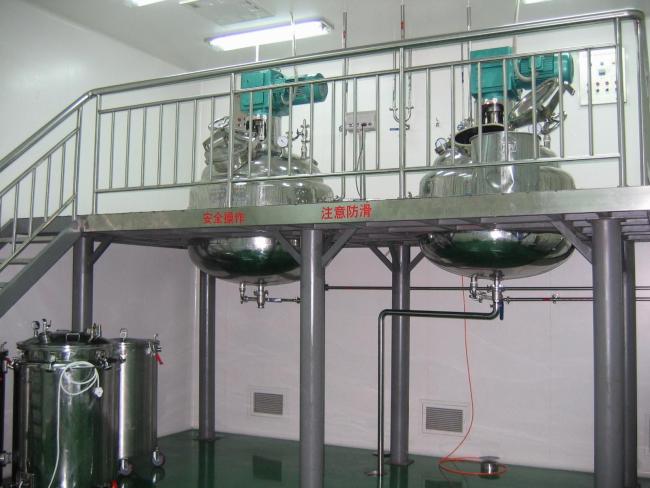

2. Gelatin Melting System



Model of the gelatin melting tank	450L	600L	800L	1000L
Capacity(L)	650	900	1120	1370
Melting gelatin(L)	100-450	150-600	200-800	300-1000
Heating area(M2)	3.2	4	4.8	5.5
Max degree of Vacuum(Mpa)	0.09	0.09	0.09	0.09
Max Temperature(℃)	-100	-100	-100	-100
Motor Power (KW)	4	5.5	7.5	7.5
Stirring speed (r/min)	50	50	50	50
Dimension (mm)	Φ1210X1880	Φ1310X1980	Φ1410X2080	Φ1510X2130

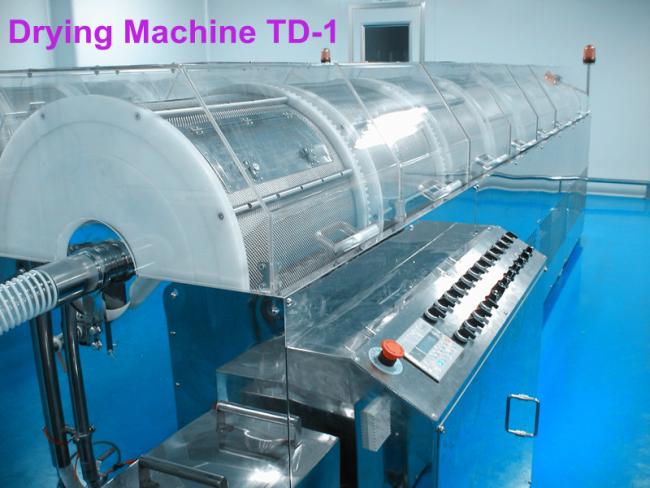

3. Tumble drying machine



Model	TD-0	TD-1	TD-2	TD-3	TD-4
Basket diameter(mm)	420	580	580	730	526
Basket length(mm)	620	600	900	1010	282
Drying fan(kw)	0.25	0.32	0.32	0.55	2
Motor Power(kw)	0.2	0.4	0.4	0.75	1.5
Basket per section	1	2	2	1	6





Paintball Encapsulation Machine, Paintball Making Machine,  Soft capsule and Paintball Encapsulation Machine.
