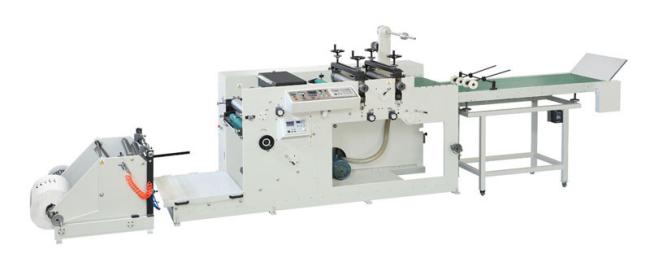

1 Color Auto Loading Seperate Unwind Printing Press For Packing Paper Bag

Main features

1)One set ceramic anilox cylinde

2)One set plate cylinder

3)Unwind auto loading, max. diameter1000mm

4)Printing unit: 360°Plate-adjustment

5)IR dryer for each printing unit.

6)With web guide system

7)Feed paper form roll material, print, coating, dry automatically by infrared ray, laminating and rewinding completed in one time.

8)It is an ideal machine for printing trade invoice and top-grade adhesive label.



Main technical specification:

Model RTRY-420A
Printing speed 80m/minute
Printing color number 1 color
Max width of paper 420mm
Max printing wide 410mm
Max unwinding diameter 1000mm
Max rewinding diameter 1000mm
Printing length 175-320mm
Precision of overprint ±0.1mm
Overall dimension 2.6(L)×1.2(W)×1.2(H)m
Weight about 1100kg





Optional parts:(can add as your request)

  • Printing unit number, up to 8 colors;
  • turn bar device;
  • Slitting set
  • Video monitor
  • Rotary die cutting set
  • Cold foil

Material details:

Printing material paper,foil, PVC,
Printing ink water based ink
Printing plate thcikness 1.7mm










See All

Ruian Ruiting Machinery Co., Ltd.

Ruiting Machinery Co.,LTD is mainly produce flexo printing machine, slitting machine, die cutting machine, cross cutting machines and so on machines.
CE,CE
  • Annual Revenue : 100-150 USD
  • Employees : 5~15
  • Year Established: 2015
  • Manufacturer, Trading Company
